Device Hub

Door Tablet external devices are easy to configure and install. The following steps are required:
  1. Prepare your devices by first attaching them to your PC using a USB cable
  2. Devices include motion sensors, climate monitors and LEDs devices, mainly strips
  3. Configure each device and note connection information
  4. Install the devices in the ceiling of a meeting space, or outside the room if using LEDs, and provide them with both power and network connection
  5. Test connection to the devices from the display outside the meeting space
  6. Configure Door Tablet to indicate that sensors are used, and how you wish the system to react to motion

Door Tablet also supports Crestron Occupancy sensors... see here: Database 'Door Tablet HELP', View 'Help Documents', Document 'Occupancy Sensors'

Device Hub

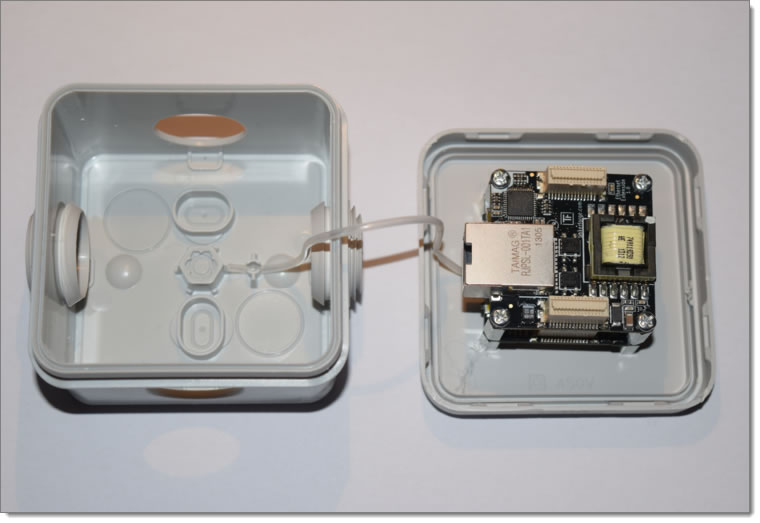

Devices are connected to the network electronics in a protective box, called the Device Hub.




Device Hub connection Types
The Device Hub come in four forms. In all cases the hub is connected to your internal ethernet network.
  1. PoE powered and networked
  2. Ethernet with local, in ceiling, USB power source
  3. Wi-Fi with local, in ceiling, USB power source
  4. USB only connection for Windows based end-point devices such as Door Tablet WM, Door Tablet MM and Intel UNITE hub. See here Database 'Door Tablet HELP', View 'Help Documents', Document 'USB only setup'

Placing Motion sensors
  1. In smaller meeting spaces simply place the sensors above the meeting space main table
  2. In larger meeting spaces place the sensors in the places people are likely to be seated
The size of the Motion Sensor with its protective case is 4x2x6cm.

Placing Remote LEDs
Remote LEDs are provided in raw form and must be packaged before installing.

Placing Health Sensors
Internal Air Quality and CO2 sensors may be installed in individual meeting spaces and common areas. As common areas may have higher ceilings it is important to place Health Sensors at a height where measurement may be effective, such as a pillar or even on a dedicated pole that descends from the ceiling.

Changing Sensors Sensitivity
You may change the sensitivity of the sensor by turning the right potentiometer which controls the detection range (3-7m). Turning the potentiometer clockwise increases the range.

Configure Network Connection
To configure your sensors follow these steps:
  1. Open the Device Hub box, where the circuitry resides
  2. Use a screw driver in the the four corners of the case to release the cover. Do not undo the two metal screws in the front of the box
  3. Connect the circuitry to your PC using a USB cable
  4. Proceed with software installation

The networking and power components for the sensor are inside the Device Hub. This hub will be placed inside the ceiling space.

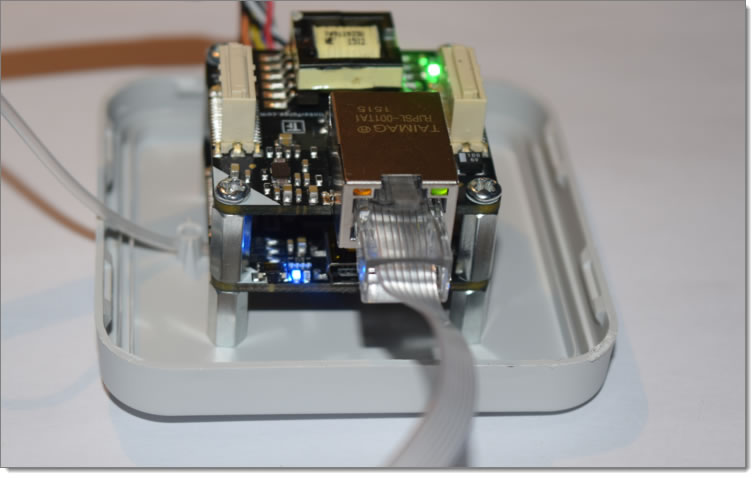

PoE based Device Hub:

Learn how to configure your sensors here Database 'Door Tablet HELP', View 'Help Documents', Document 'Configure your Sensors'

Note: When using Windows devices you may connect the sensor circuitry directly to the Windows device using a USB cable. Hence, the circuitry will no longer be on the network and instead it will be connected directly to the end-point.

Packages
Door Tablet offers some packages. Please see an example of the bottom of this page: Database 'Door Tablet HELP', View 'Help Documents', Document 'Remote LEDs'
