Door Tablet SAM-S
available

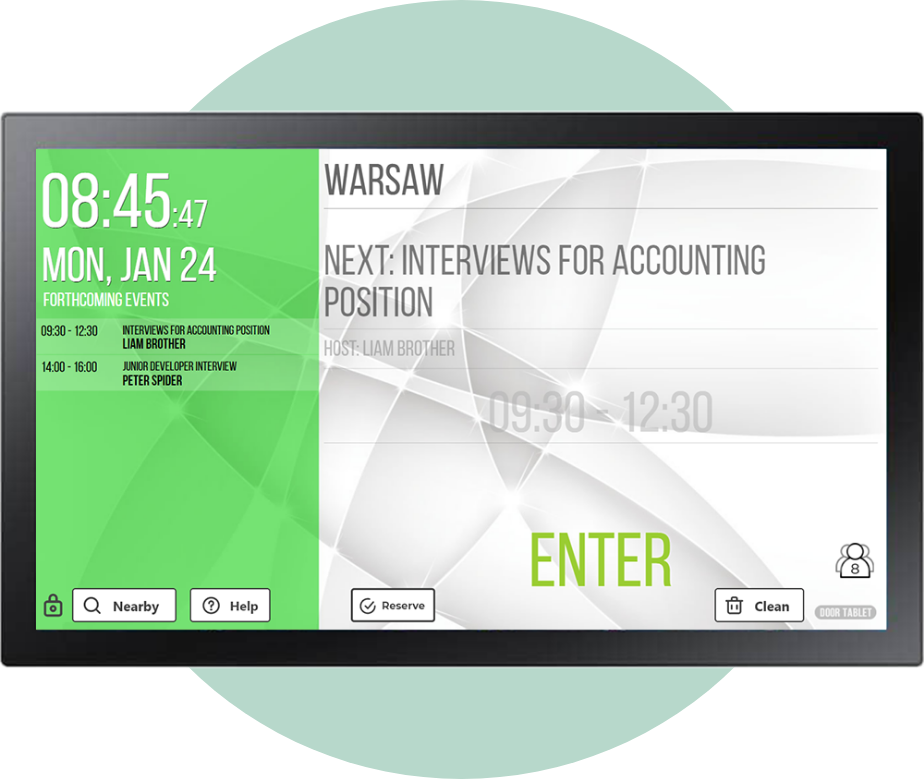

13" & 24" Workspace Signage Touch Display
The purpose-built Samsung display is placed outside your meeting spaces
Manufactured by:
Easy to Install
Works “out of the box” and comes with all the fixtures and fittings needed to get it up where it will be seen. It’s easy to mount on any surface including glass, brick and metal.
Readable at Wide Viewing Angles
The IPS display ensures the screen can be read comfortably at a distance and at wide angles so there’s no need to get up close to read what’s being displayed.
Sturdy
The screen is tempered glass which means it is tough, easy to clean and will not shatter, crack or deteriorate excessively with time or heavy use. It’s built to last and stay looking good.
Attractive
It is sleek and slim with a 13” high resolution (1920 x 1080 px) full color touchscreen; meaning it not only looks good, but the display is easy to read and provides smooth interaction. Black chassis by default with option for white color.
A range of screen sizes and exceptional brightness
The 13" and 24" models are perfect for Door Tablet Room display use or Wayfinding purposes.
Power over Ethernet (PoE+)
With no need to rely on Wi-Fi signals, a single PoE+ cable powers the CR giving you the benefit of full power management, saving costs and the environment. Shut down and restart screens as needed. Alternately use mains power. No battery inside means the devices last for years to come.

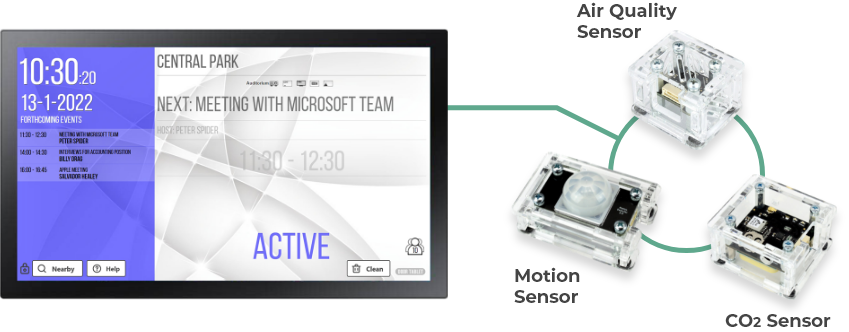

Door Tablet's Integration with sensors brings an advantage to your space and employees
Tablet Specifications
Optional mounting and status indication solutions available
Features
Orientation display |
Landscape/Portrait |
Colors |
Black |
Power Adapter Type |
External |
Wi-Fi |
Yes |
Proximity Sensor |
No |
Brightness Controls |
Yes |
Wall Mountable |
Yes |
Display
Display Type |
LCD |
Screen Size |
13.27" (diagonal) |
Resolution (Max.) |
1920 x 1080 pixels |
Brightness |
250 cd/m² |
Contrast ratio |
600 : 1 |
Viewing angle (H/V) |
178° x 178° |
I/O Interface
Ethernet Ports |
1 |
USB |
1 x USB type A - Touchscreen Control/Power |
Audio Output |
1 x 1/8" / 3.5 mm – Audio
Built in Speaker (5W) |
Video Input |
1 x HDMI 1.4 Audio, Video |
Control |
RS-232C via 1/8" / 3.5 mm Input |
Hardware
Dimensions without stand |
12.7 x 7.6 x 1.2"
322.0 x 193.5 x 29.8 mm |
Weight |
2.43 lb / 1.10 kg |
Mounting |
Glass / Surface |
Housing |
Plastic |
Environment |
Temperature: 32 to 104°F / 0 to 40°C
Humidity 10% to 80% |
IP Rating |
IP5X |
