Door Tablet NXT
available

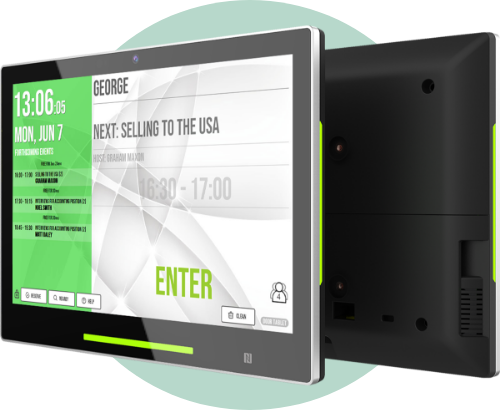

Workspace Signage Touch Display

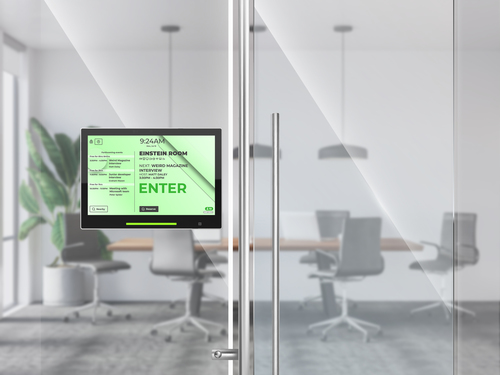

Our slim, streamlined, purpose-built display is placed outside your meeting spaces
Manufactured by:

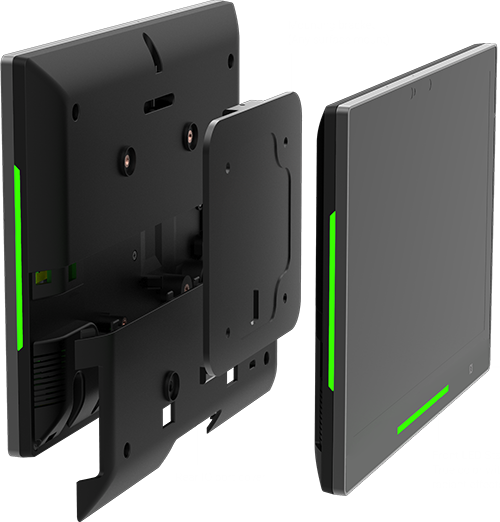

Easy to install
Works “out of the box” and comes with all the fixtures and fittings needed. It’s easy to mount on any surface including glass, brick, plaster and metal. The device comes with a security lock, built-in.
Readable at Wide Viewing Angles
The IPS display ensures the screen can be read comfortably at a distance and at wide angles, so there’s no need to get up close to read what’s being displayed.
Sturdy
The screen is Antimicrobial Corning® Gorilla® Glass glass which means it is tough, easy to clean and will not shatter, crack or deteriorate excessively with time or heavy use. It’s built to last and stay looking good.
Attractive
It is sleek and slim (2cm deep) with a 10.1” high resolution (1920 x 1200 dpi) full color touchscreen so the display is easy to read and provides smooth interaction. Add your branding and make the device yours.
Power over Ethernet (PoE+) Built-in
With no need to rely on Wi-Fi signals, a single PoE+ cable powers the NXT, giving you the important benefit of full power management to save costs and the environment. Shut down and restart screens as needed.
LED Light on Front & Sides
A bright and colorful LED light strip on the front of the Door Tablet NXT signals that a room is free or busy and is visible from distance - so there is no need to walk up to a room to see its status.
Features
CPU |
ARM Quad-core Cortex-A55 up to 2.0GHz (64 bit) |
Memory |
2GB LPDDR4 |
Storage |
32GB eMMC |
Orientation display |
Landscape/Portrait |
Audio codecs |
MPEG/OGG/ACC |
Colors |
Black |
PoE+ |
PoE+ (25W) |
Wi-Fi |
Yes |
RFiD |
Built-in |
Display
Size |
10.1” |
Resolution (Max.) |
1920 x 1200(FHD) |
Brightness |
430 nits |
Contrast ratio |
1000 : 1 |
Viewing angle (H/V) |
170/170 |

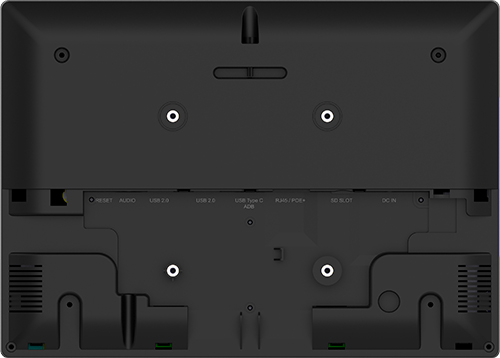

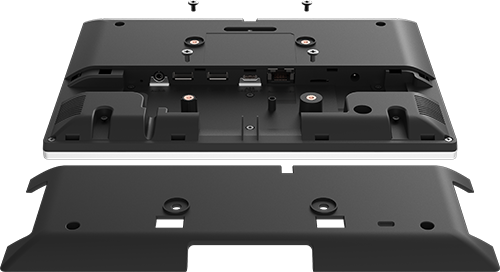

I/O Interface
Ethernet |
RJ45 (10M/100M) |
USB |
2 x USB2.0 type A/ 1 x USB3.0 type C (w/ ADB) |
Analog Stereo out |
1 x 3.5mm stereo (MIC-in & Audio-out) |
Expansion storage |
1 x Micro SDHC/SDXC slot |
Speaker |
2W x 2 |
Hardware
Dimensions without stand |
242.9 x 173.4 x 20.5 mm
9.56” x 6.82” x 0.80” |
Camera |
1 x 8M with HDR |
Mounting |
Glass / Surface / Recessed |
Housing |
Plastic & Mg-Al Alloy |
Environment |
Operating Temp. 0~50°C |
Power - Optional |
Power Adapter |
Certification |
CE/FCC/RoHS/NCC/IMDA |
