Enable RFID software

To enable usage of RFID in the Door Tablet software you will need to make a number of configuration changes:

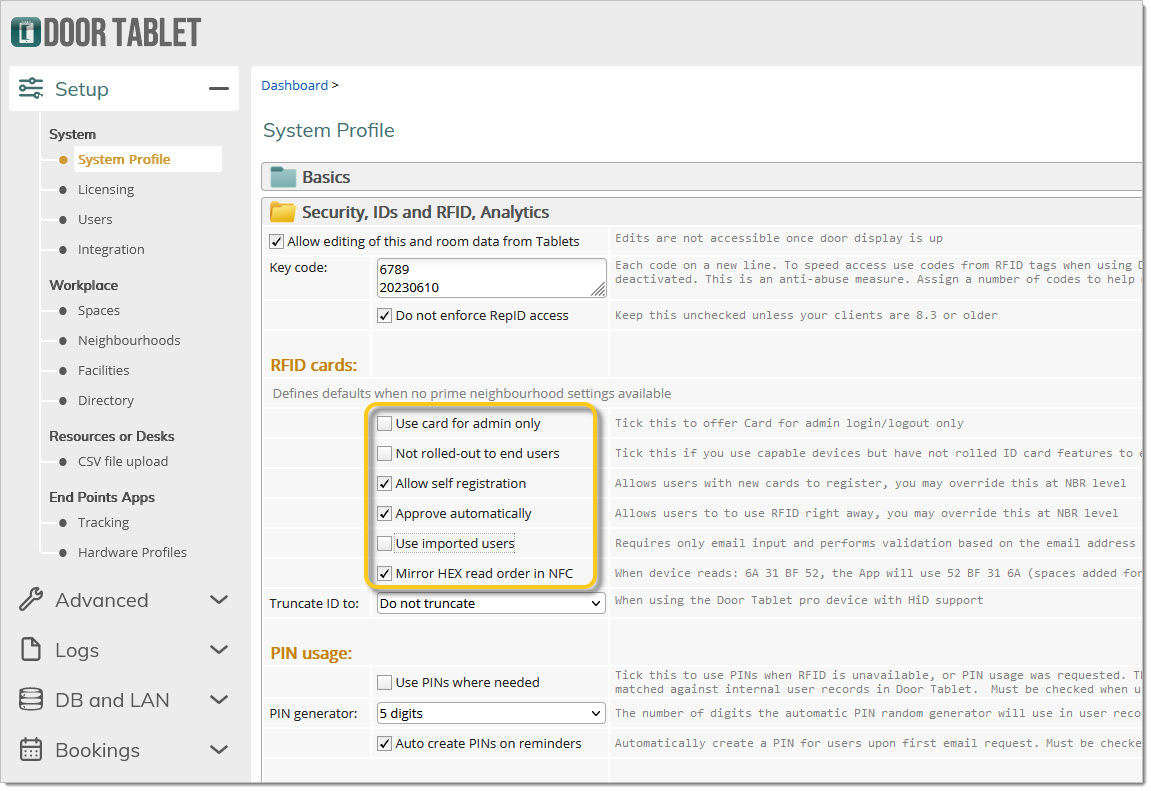

In the system profile...


Note: read on about the option to "Use imported users" when offering self registration.

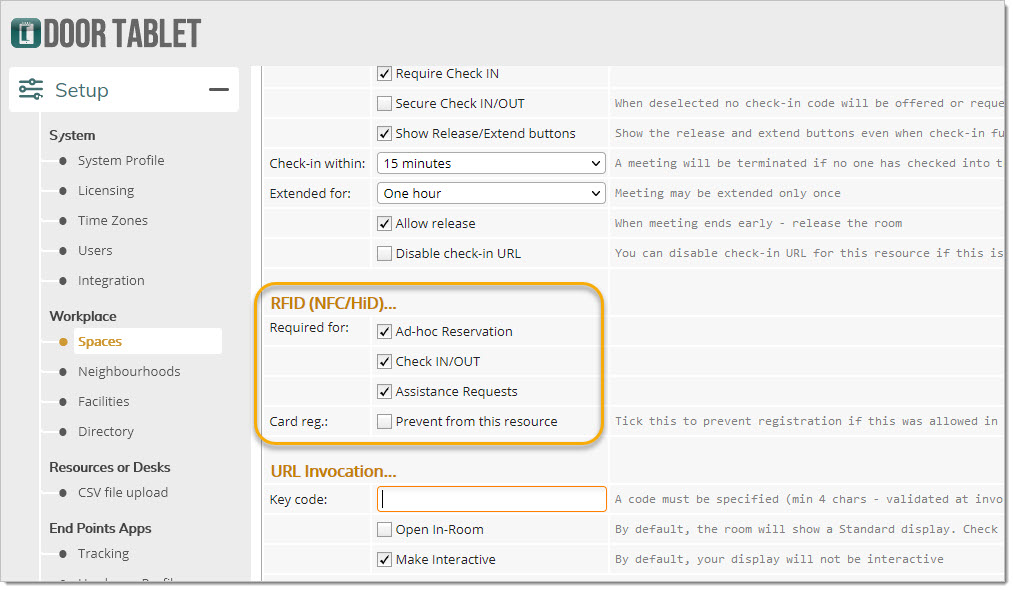

In individual space records...

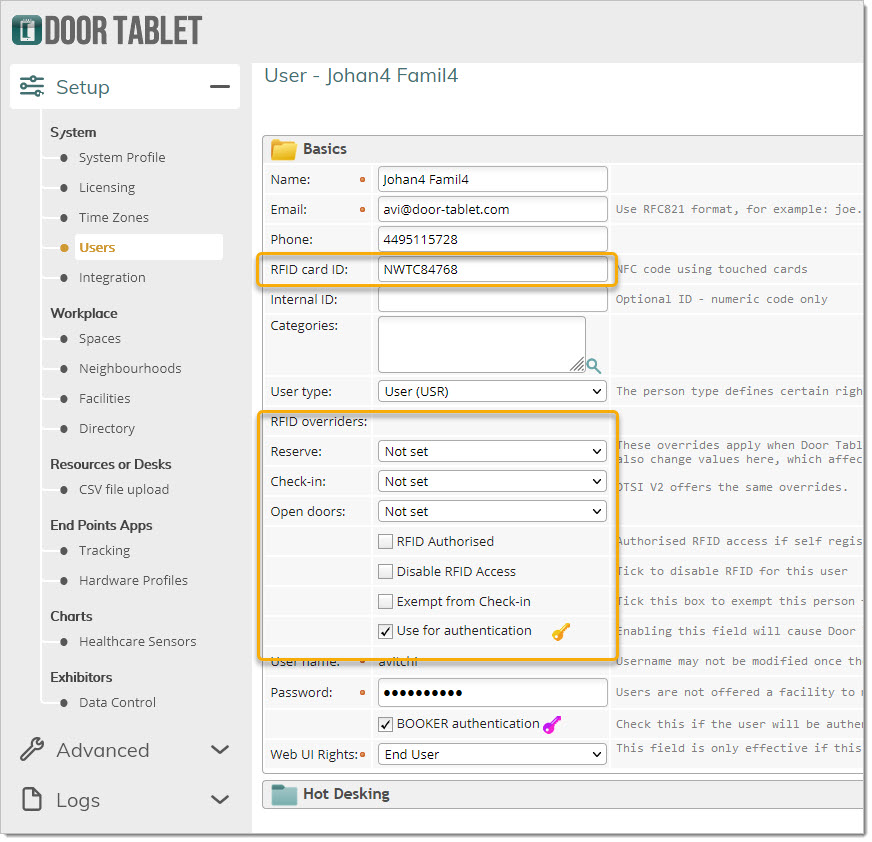

In user records...

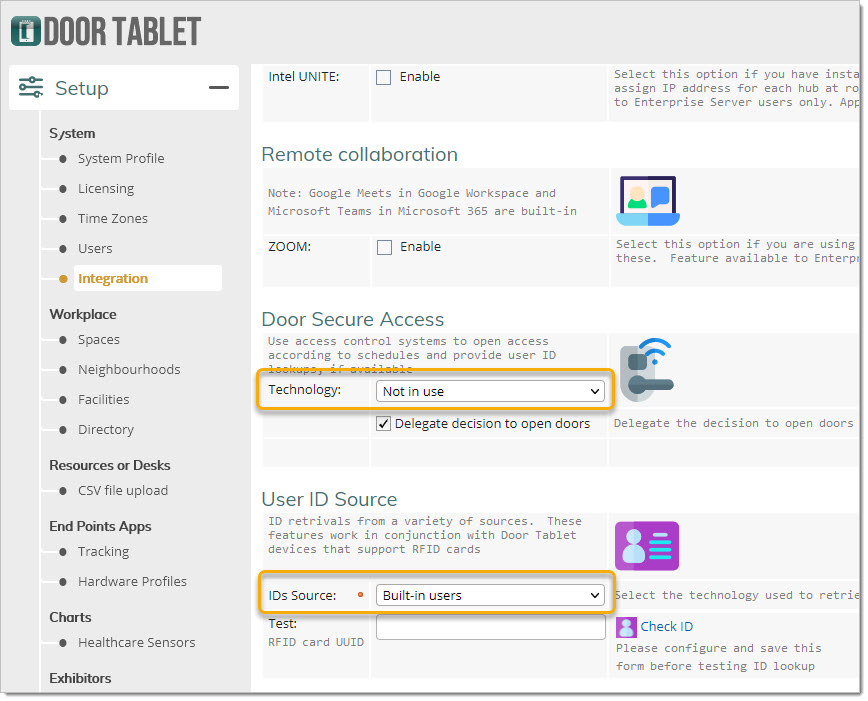

If you are integrating with Access Control and other ID Sources


Note
You need to enable RFID on the actual device, too.

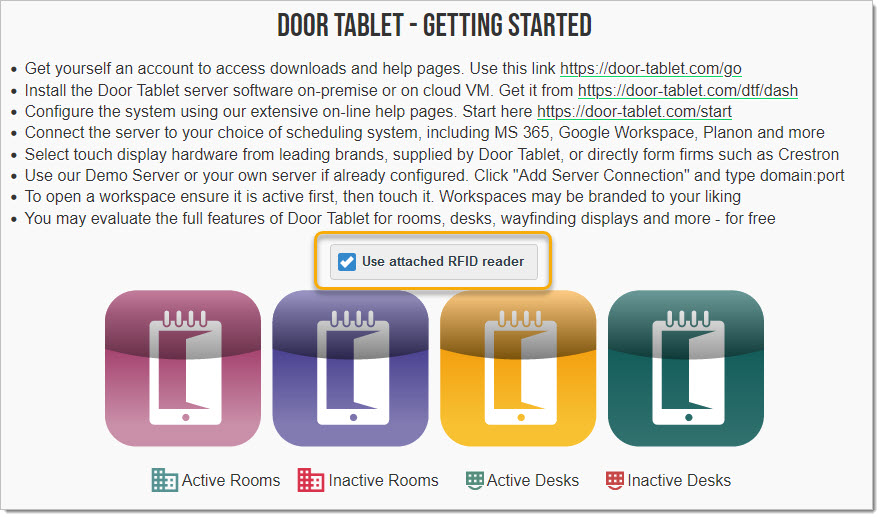

On devices that we do not support a built-in RFID you can attach an external RFID reader, and mark it as attached:


For additional hardware setup see here Database 'Door Tablet HELP', View 'Help Documents', Document 'Enable RFID hardware'

Using Imported Users
With Door Tablet you can easily import users to the Door Tablet system. When you import users we recommend that you import at least:

  1. Name
  2. Email address
But not RFID number or code.

Now, when you enable Self RFID registration, your users will need to present their card and only type their in RFC821 format, eg name@domain.com.

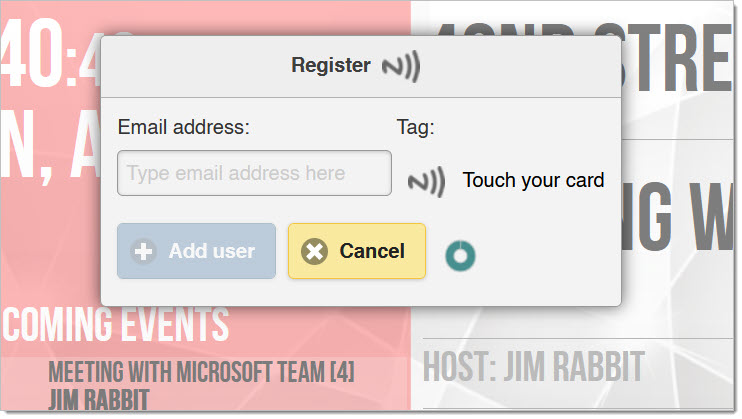

Requesting registration...

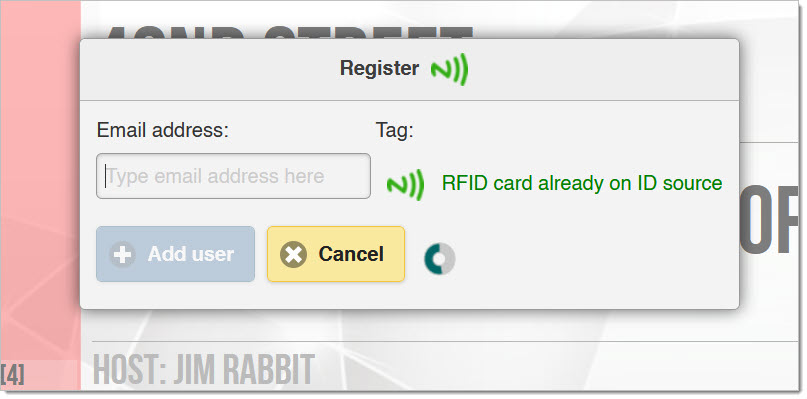

If the card is already in use, the system check this right away, upon card presentation...

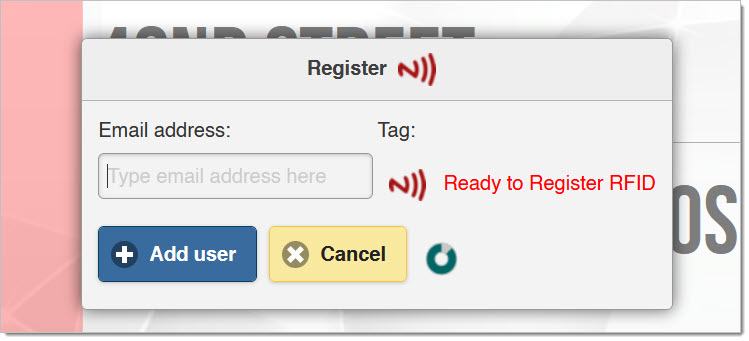

If the card is not found and can be registered...

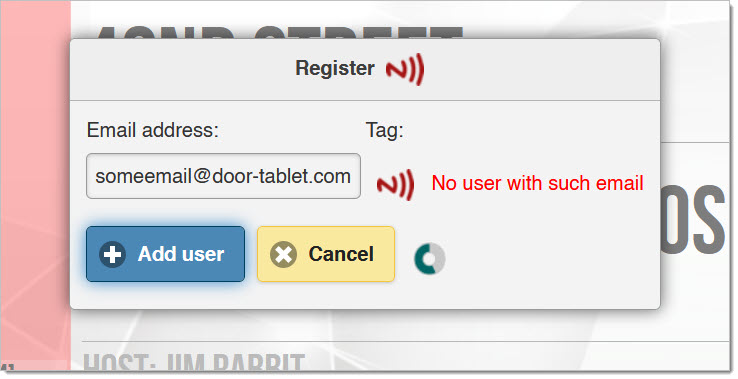

If the user types and email address that cannot be found on the server...

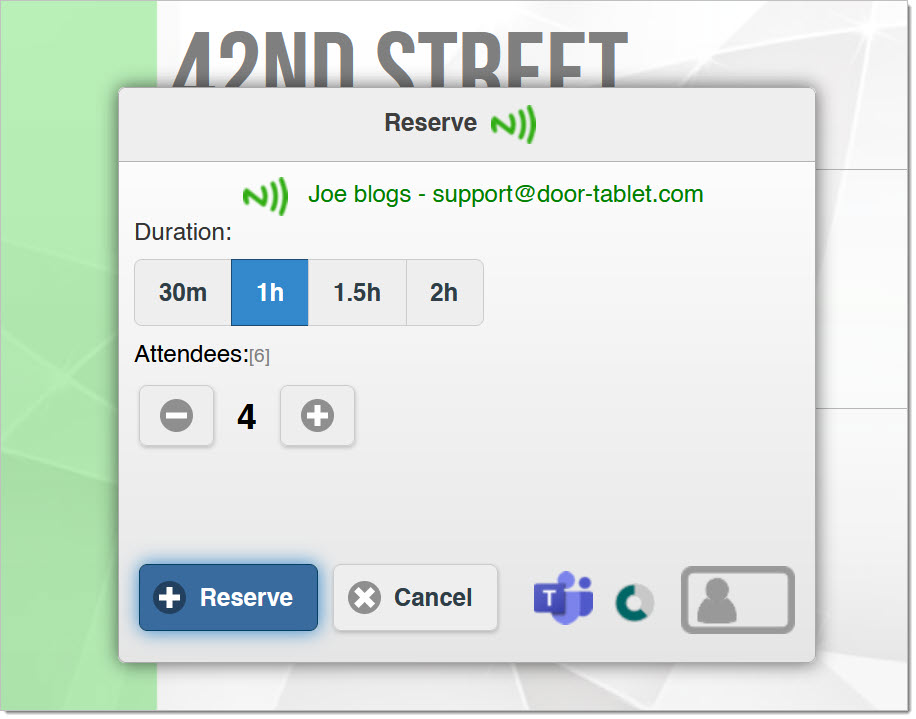

If the email address is found the RFID registration completes and the user may use it immediately for all the purposes set up by the administrator...
