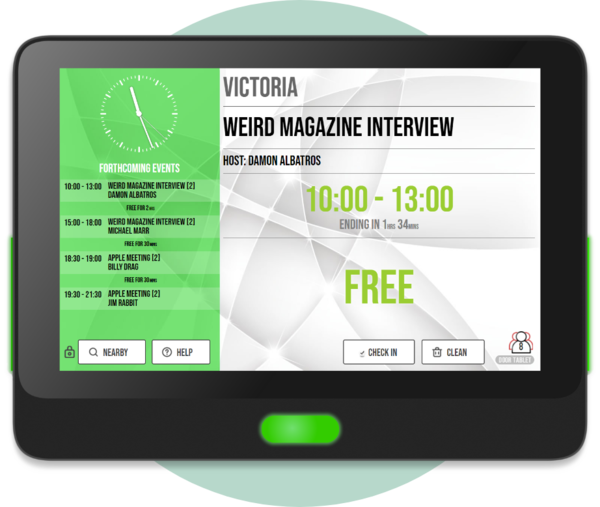

Workspace Signage Touch Display
Our purpose-built premium display is placed outside your meeting spaces
Manufactured by:
Easy to Install
Works “out of the box” and comes with all the fixtures and fittings needed to get it up where it will be seen. It’s easy to mount on any surface including glass, brick and metal.
Readable at Wide Viewing Angles
The IPS display ensures the screen can be read comfortably at a distance and at wide angles so there’s no need to get up close to read what’s being displayed.
Sturdy
The screen is tempered glass which means it is tough, easy to clean and will not shatter, crack or deteriorate excessively with time or heavy use. It’s built to last and stay looking good.
Attractive
It is sleek and slim (3cm deep) with a 10.1” high resolution (1280 x 800 dpi) full color touchscreen; meaning it not only looks good, but the display is easy to read and provides smooth interaction. Black chassis by default with option for white color.
LED Lighting on Front and Sides
Bright and colorful LED lights on the front and sides of the Door Tablet TC signal that a room is free or busy, and is clearly visible from distance - so there is no need to walk up to a room to see its status.
Power over Ethernet (PoE+)
With no need to rely on Wi-Fi signals, a single PoE+ cable powers the TC giving you the benefit of full power management, saving costs and the environment. Shut down and restart screens as needed. Alternately use mains power. No battery inside means the devices last for years to come.
Features
CPU |
ARM quad-core 1.6GHz |
Memory |
2GB DDR3 |
Storage |
8GB eMMC |
Display Orientation |
Landscape/Portrait |
Audio codecs |
MP3 |
Colors |
Black Only |
PoE+ |
Yes |
Wi-Fi |
Yes |
Display
Size |
10.1” |
Resolution (Max.) |
1280 x 800 |
Brightness |
300 nits |
Contrast ratio |
1000 : 1 |
Viewing angle (H/V) |
178/178 |
I/O Interface
Ethernet |
RJ45 (10M/100M) |
USB |
2x USB2 type / Micro USB |
Analog Stereo out |
3.5mm stereo |
Storage Expansion |
Micro SDHC slot |
Speaker |
2W x 2 |
Mechanical
Dimensions without stand |
261.1 x 193.3 x 27mm
10.28” x 7.61” x 1.06” |
Weight |
710g / 1.56 lbs |
Mounting |
Glass / Surface / Recessed |
Housing |
Plastic |
Environment |
Operating Temp. 0~50°C
Humidity: 10 to 85%
(non-condensing) |
Power - Optional |
DC 12V, 1.5A |
Certification |
CE/FCC/RoHS |
