Door Tablet CRE

available

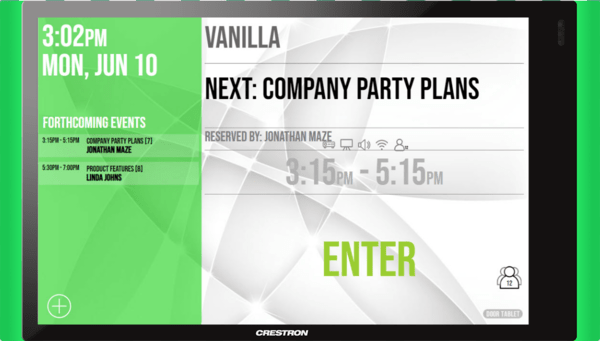

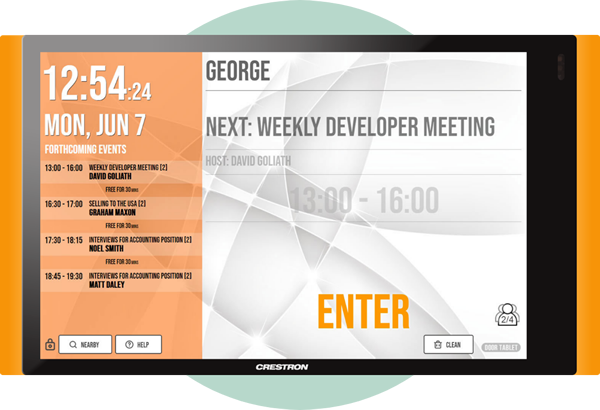

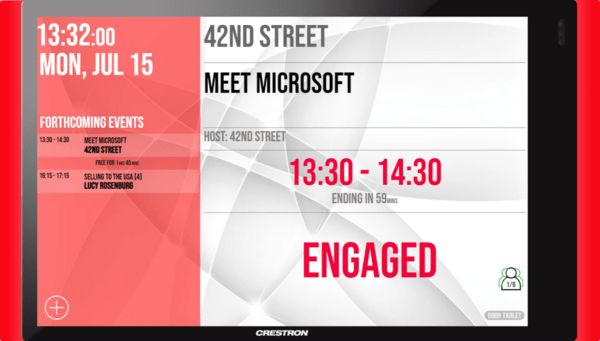

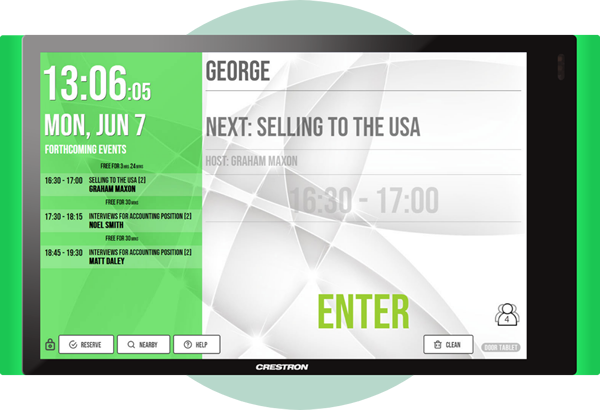

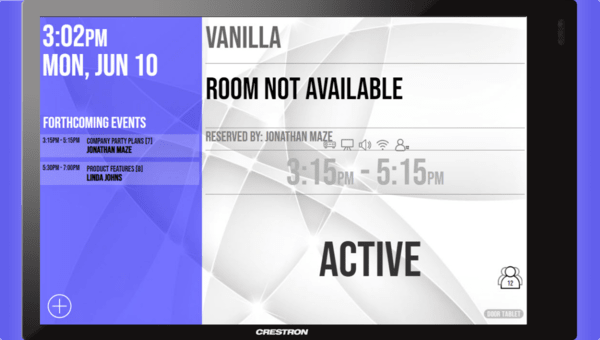

Workspace Signage Touch Display

The purpose-built Crestron display is placed outside your meeting spaces.  Available with sensors and RFID options.

Manufactured by:

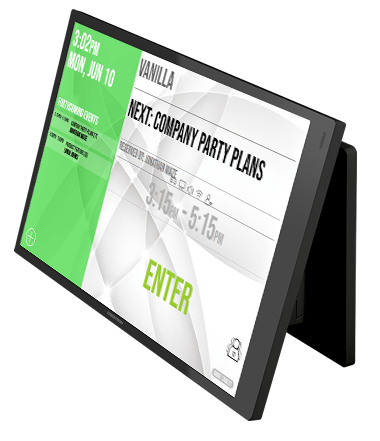

Easy to Install
Works “out of the box” and comes with all the fixtures and fittings needed to get it up where it will be seen. It’s easy to mount on any surface including glass, brick and metal.
Readable at Wide Viewing Angles
The IPS display ensures the screen can be read comfortably at a distance and at wide angles so there’s no need to get up close to read what’s being displayed.
Sturdy
The screen is tempered glass which means it is tough, easy to clean and will not shatter, crack or deteriorate excessively with time or heavy use. It’s built to last and stay looking good.

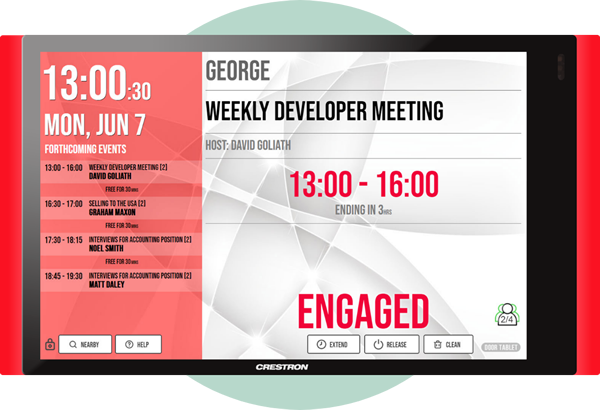

Attractive
It is sleek and slim with a 10.1” high resolution (1920 x 1200 px) full color touchscreen; meaning it not only looks good, but the display is easy to read and provides smooth interaction. Black chassis by default with option for white color.

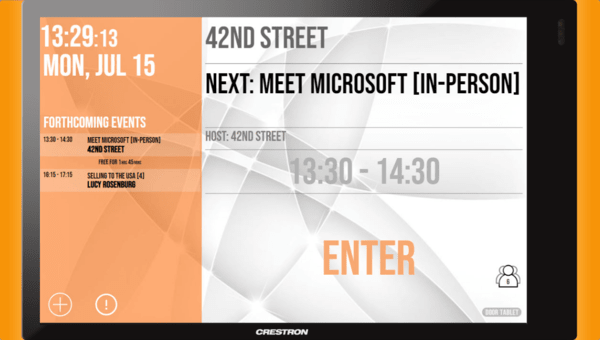

LED Lighting visible from all angles
LED lights on the device visible from all angles with additional options to attach external lights within the proximity of the tablet.
Power over Ethernet (PoE+)
With no need to rely on Wi-Fi signals, a single PoE+ cable powers the CR giving you the benefit of full power management, saving costs and the environment. Shut down and restart screens as needed. Alternately use mains power. No battery inside means the devices last for years to come.

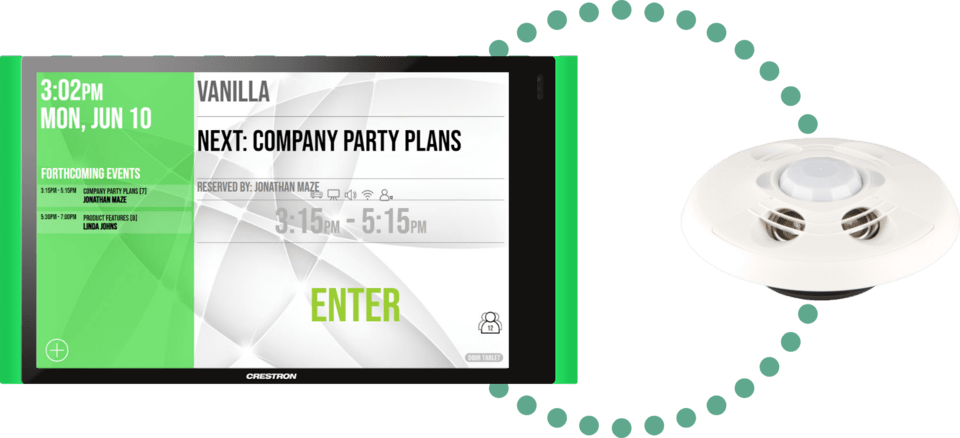

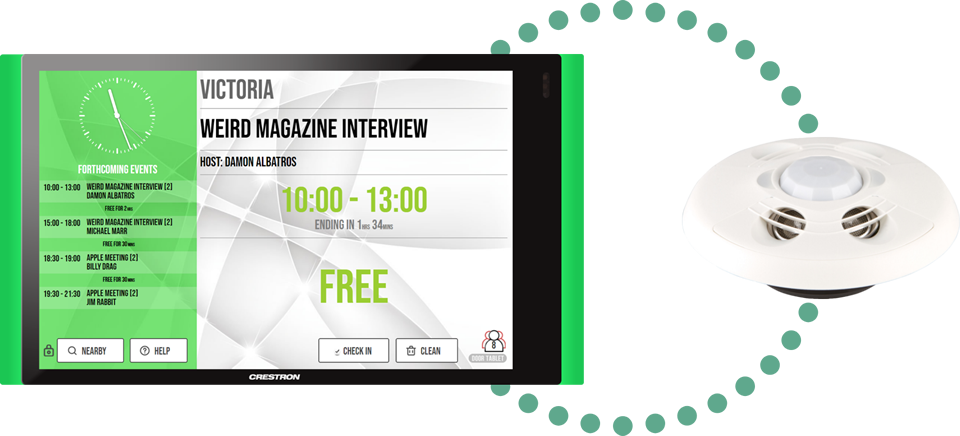

Door Tablet CRE integrates with sensors and offers several options for mounting and status indication.  Sensors include Occupancy, Air Quality and CO2.  RFID Option also available.

Tablet Specifications

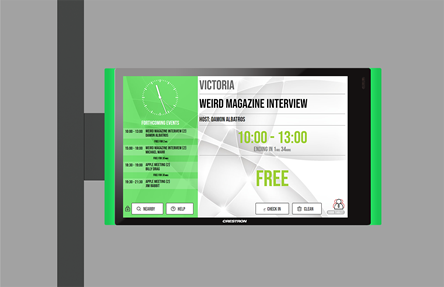

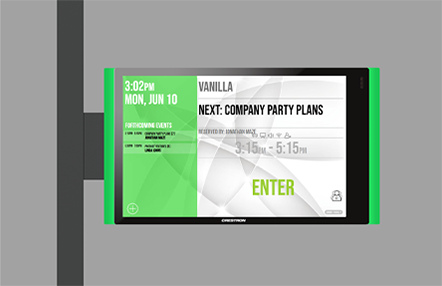

Optional mounting and status indication solutions available

Features

Orientation display Landscape/Portrait
Colors Black, White
PoE+ Yes
Wi-Fi Yes
Proximity Sensor Yes
Brightness Controls Yes
Wall Mountable Yes

Display

Display Type TFT active matrix color LCD
Size 10.1” (257 mm) diagonal
Resolution (Max.) 1920 x 1200 pixels
Brightness 400 nits
Contrast ratio 1000 : 1
Viewing angle (H/V) ±80° horizontal, ±80° vertical

I/O Interface

Ethernet RJ45 (10M/100M)
USB 2 x USB 2.0 type A
Audio Built-in Speakers

Hardware

Dimensions without stand 240 x 149 x 51mm
9.56” x 5.87” x 2.01”
Weight 730g / 1.61 lbs
Mounting Glass / Surface
Housing Plastic
Environment Operating Temp. 0~40°C
Humidity: 10% to 95% RH(noncondesing)
(non-condensing)
Certification IC, CE, FCC Part 15 Class B digital device

Occupancy Sensor Specifications

Sensing

Motion Detection Technology Passive infrared (PIR) motion detection;
Ultrasonic (US) (40 kHz)
Coverage Area 2,000 sq ft
Coverage Pattern 360 degrees

Connections & Power

RJ-45 (1) 8-wire RJ-45, female;
10/100 Ethernet port;
IEEE 802.3af
Power over Ethernet IEEE 802.3af PoE Powered Device;
4 W max

Hardware

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (noncondensing)
Housing Plastic, white
Mounting Several mounting options available
Diameter 4.80 in (122 mm)
Depth 3.185 in (81 mm) overall;
Weight 0.53 lb (240 g)
